PH-016A BenchType Ph Meter

Product Description

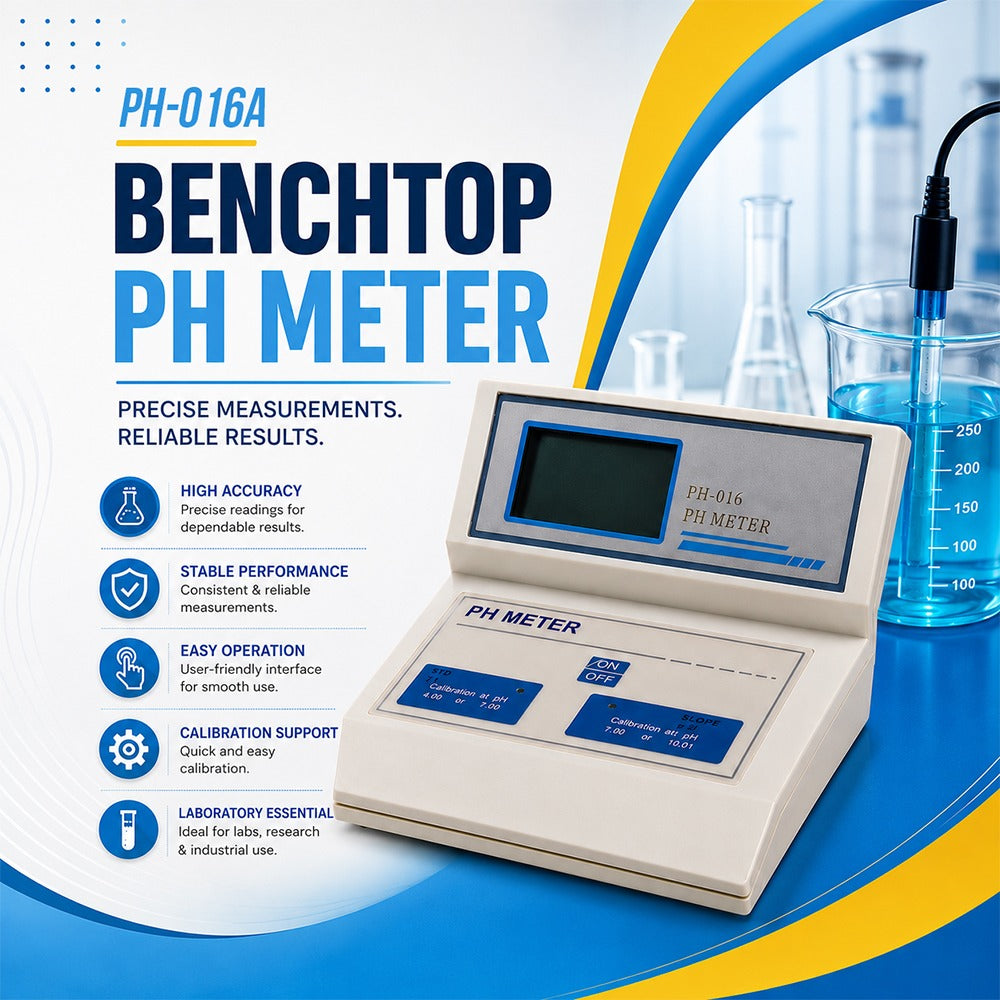

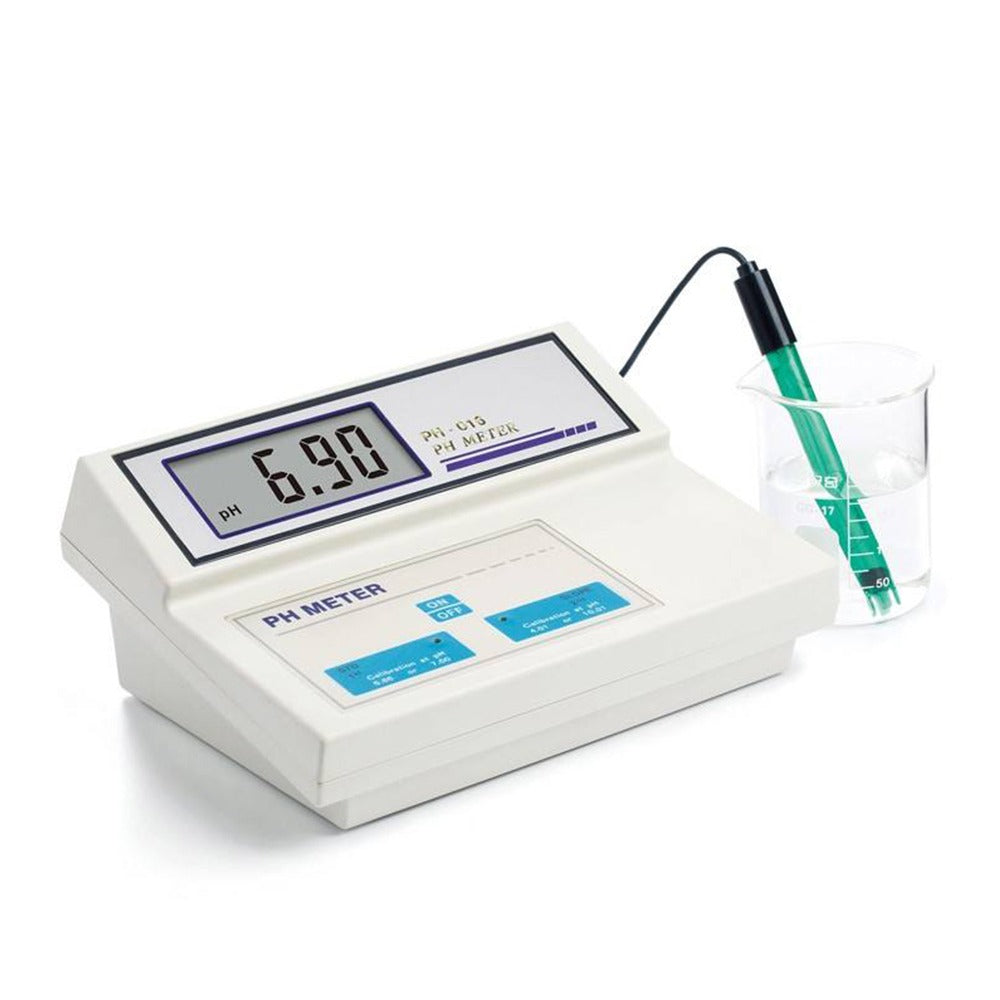

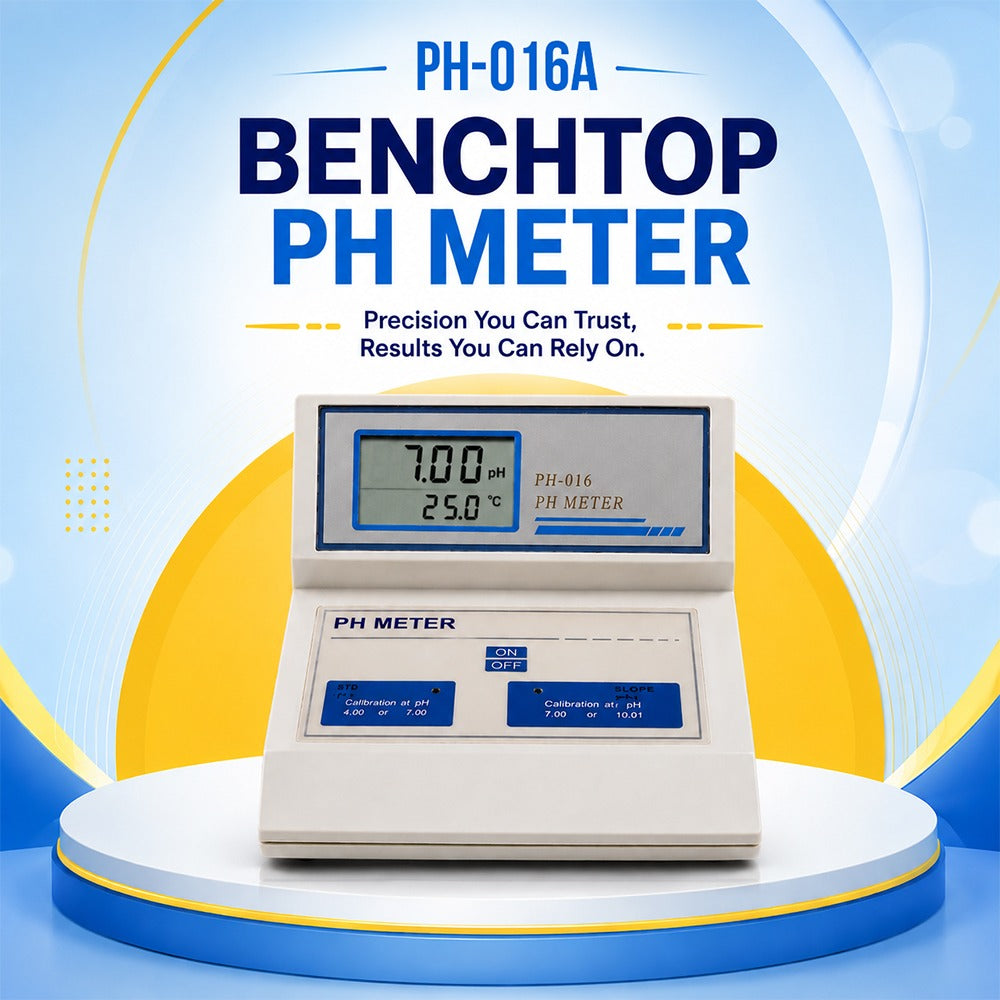

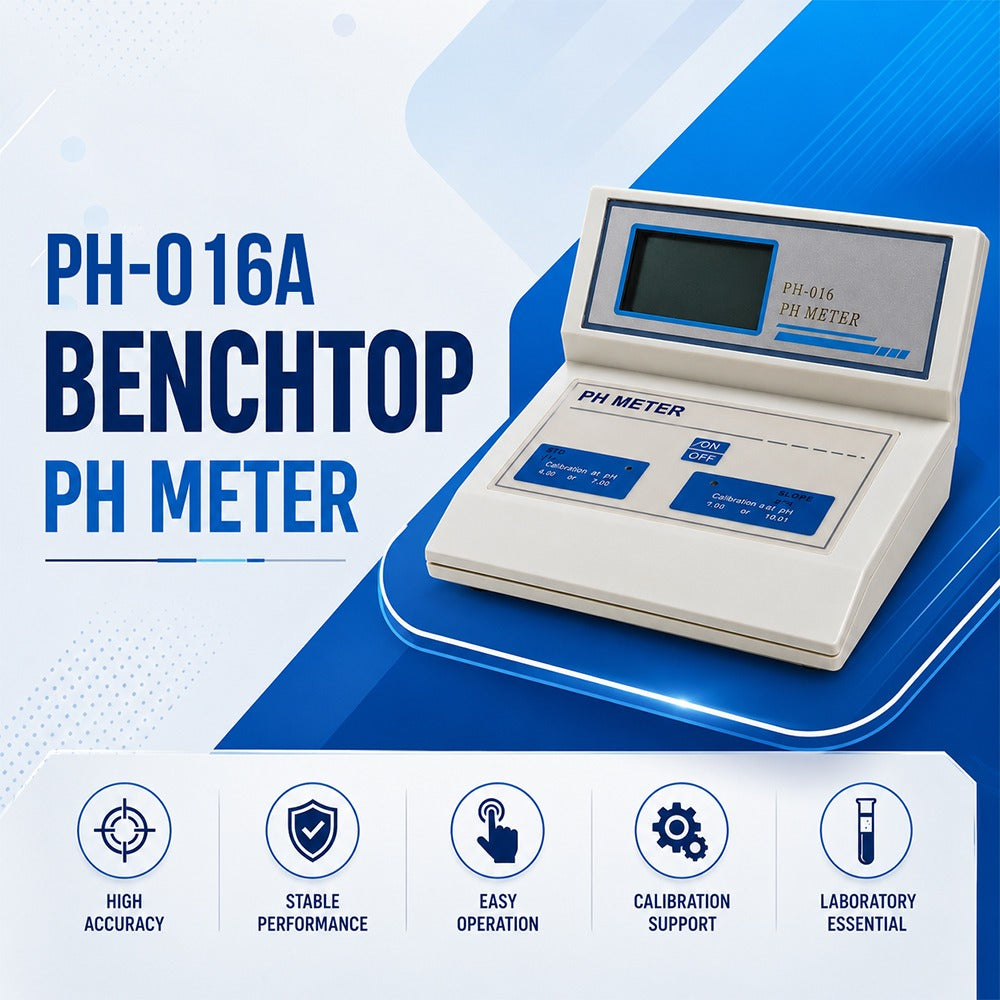

The PH-016A Bench-Top pH Meter is an accurate electrochemical apparatus engineered to deliver reliable, real-time measurements of pH levels and temperature in aqueous solutions. Built with advanced microcomputer technology based on the Nernst equation, this instrument provides rapid, stable, and highly accurate readings for professional and industrial applications.

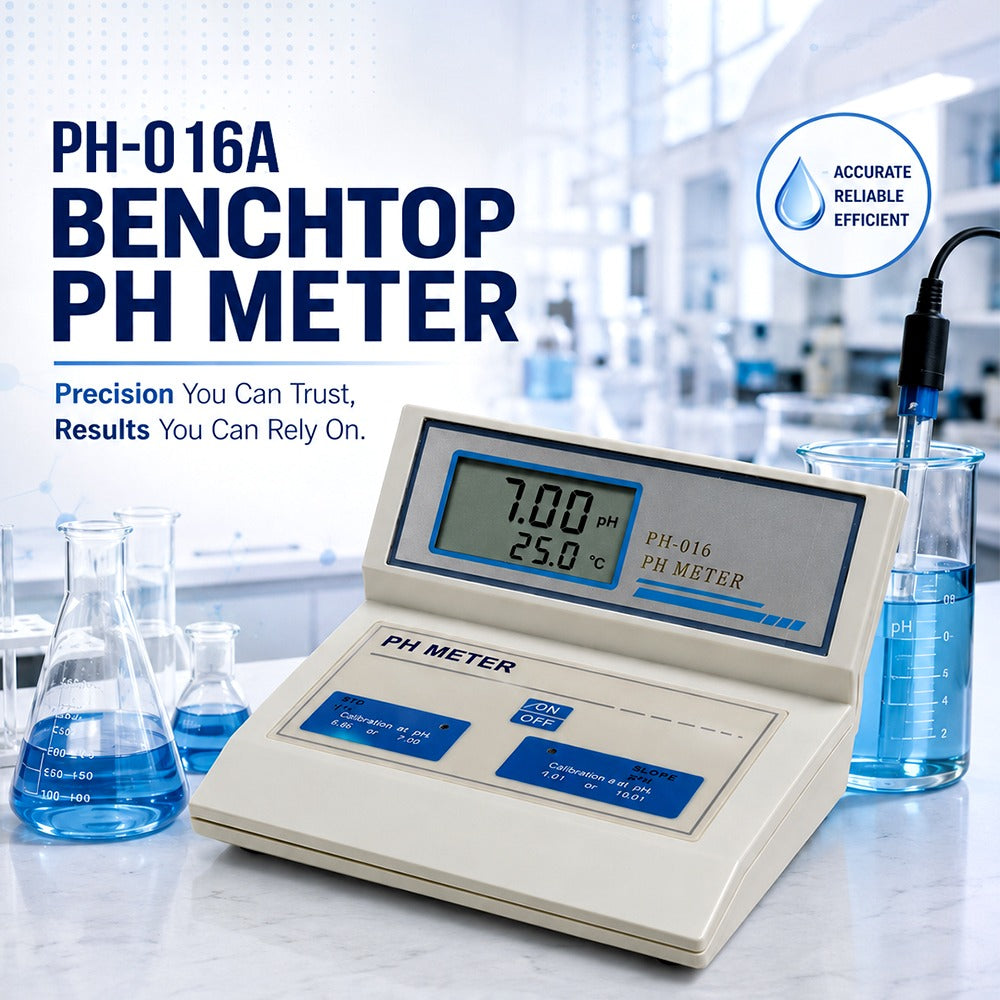

Featuring a backlit 4-digit LCD display, the PH-016A ensures clear visibility even in low-light laboratory environments. The device comes equipped with a combined pH electrode and an automatic temperature compensation (ATC) probe, eliminating measurement errors caused by temperature fluctuations.

With its high input impedance of 10¹² Ohm, the PH-016A minimizes signal interference and ensures stable, repeatable results. The intuitive front-panel keyboard allows users to easily switch between pH and temperature modes, perform calibration, and access various measurement settings.

Key Features

• Triple Measurement Capability: Measures pH (0.00–14.00) and Temperature (0–100°C) in one compact unit.
• High Accuracy: pH accuracy of ±0.01 pH — ideal for laboratory-grade precision.
• Backlit LCD Display: Large 4-digit backlit screen for easy reading in any lighting condition.
• Automatic Temperature Compensation (ATC): Built-in temperature probe automatically corrects pH readings for temperature variations (0°C–50°C).
• High Input Impedance: 10¹² Ohm input impedance ensures minimal signal loss and maximum measurement stability.
• Microcomputer-Based Technology: Real-time monitoring and intelligent data processing using advanced Nernst equation algorithms.
• Easy Calibration: Simple 2-point manual calibration with trimmer adjustment for reliable accuracy.
• Versatile Power Options: Supports both AC 110V and AC 220V (50/60Hz) for global compatibility.
• Compact & Durable Design: Bench-top form factor (240mm × 185mm × 100mm) with robust construction for long-term use.
• Complete Kit: Includes combined pH electrode, temperature compensation probe, power adapter, and user manual.

Technical Specifications

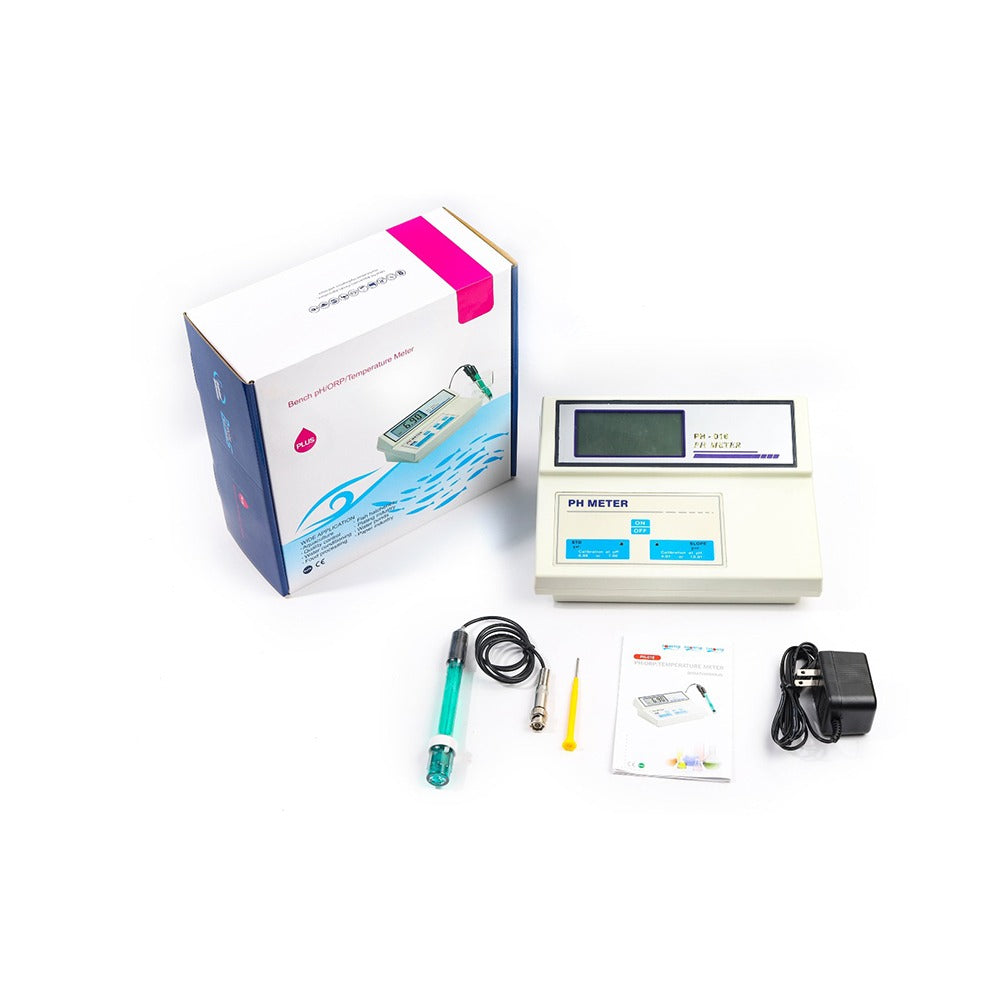

What's in the Box

• 1 × PH-016A Bench-Top pH Meter Unit

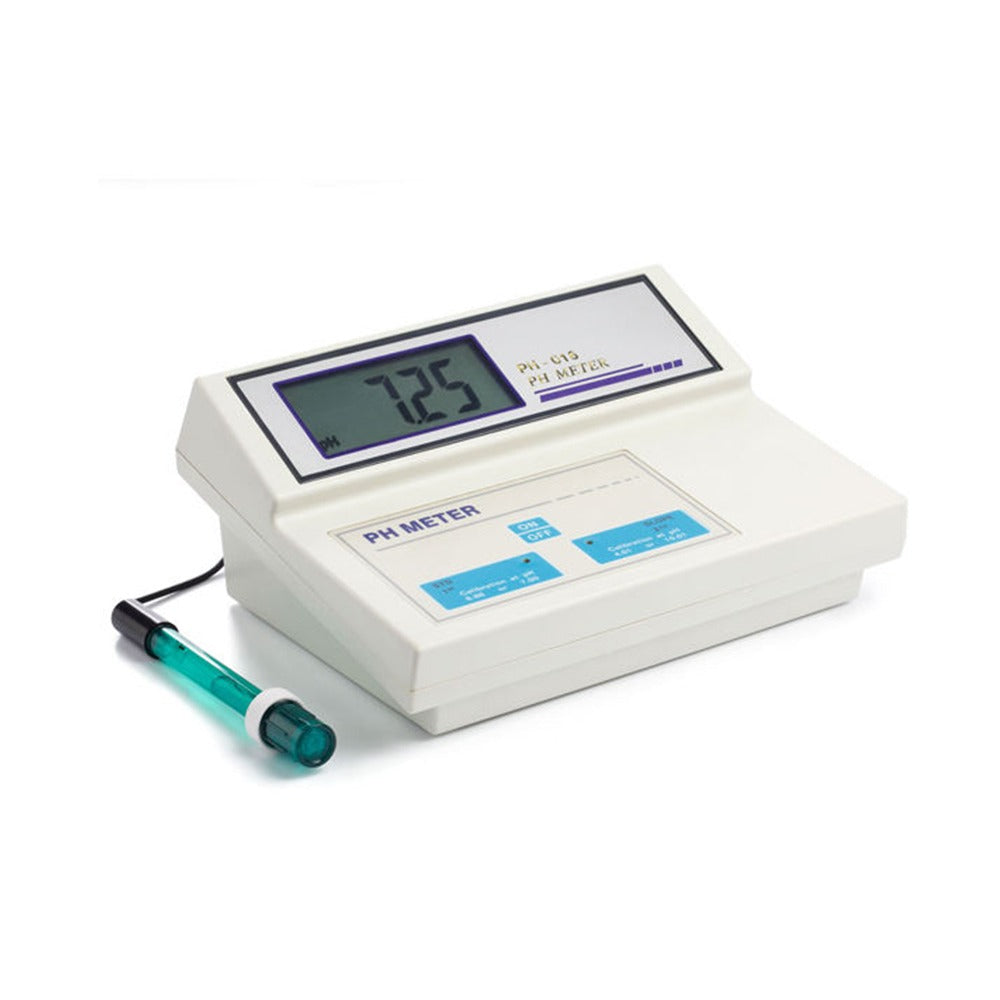

• 1 × Combined pH Electrode (BNC Connector)
• 1 × Automatic Temperature Compensation (ATC) Probe
• 1 × AC Power Adapter (110V/220V compatible)
• 1 × User Manual / Instruction Guide
• 1 × Electrode Storage Cap

Frequently Asked Questions (FAQ)

Care & Maintenance Tips

• Always store the pH electrode in 3M KCl storage solution or pH 7.00 buffer when not in use.
• Rinse the electrode with distilled water before and after each measurement.
• Calibrate the meter regularly — ideally before each use or at least once per week.
• Avoid exposing the meter to extreme temperatures or high humidity beyond specified limits.
• Replace the electrode when response time slows or calibration becomes difficult.
