Non Contact Photo Tachometer

The Non Contact Photo Tachometer is a digital rotational speed measuring instrument designed to measure the RPM of rotating objects without making physical contact. Using an optical sensing method, the tachometer detects the movement of a rotating surface and provides a digital RPM reading on its LCD display.

This Non-contact RPM meter is suitable for applications where direct contact with rotating machinery may be inconvenient, unsafe, or unsuitable. It can be used for measuring the rotational speed of motors, fans, turbines, machinery, conveyors, wheels, and other rotating components.

With a measurement range of 0 to 100,000 RPM, 0.1 RPM resolution, and ±0.05% of reading accuracy, the Non Contact Photo Tachometer is designed for precision rotational-speed measurement. Its compact and lightweight design also makes it convenient for laboratory, industrial, maintenance, automotive, and field applications.

Key Features of Non Contact Photo Tachometer

• Non-contact optical RPM measurement
• Measurement range from 0 to 100,000 RPM
• High accuracy of ±0.05% of reading
• 0.1 RPM measurement resolution
• Clear LCD digital display
• Real-time rotational speed measurement
• Optical sensor for detecting rotating objects
• Safe measurement without physical contact
• Compact and lightweight design
• Portable for field and maintenance applications
• Battery-operated for convenient use
• Suitable for motors, fans, turbines, conveyors, and rotating machinery
• Useful for mechanical maintenance and diagnostics
• Suitable for laboratory and research applications

Technical Specifications

Benefits of Non Contact Photo Tachometer

• Non-Contact Measurement: Measures rotational speed without physically touching the rotating component.
• Wide RPM Range: Supports measurements from 0 to 100,000 RPM, making it suitable for a wide variety of rotating equipment.
• High Measurement Accuracy: Provides accuracy of ±0.05% of reading for precision RPM monitoring.
• Fine Resolution: With 0.1 RPM resolution, the instrument can display small changes in rotational speed.
• Safe Testing: Non-contact operation helps reduce the need to place a measuring instrument directly against moving machinery.
• Easy-to-Read Display: The LCD digital display allows users to view RPM measurements clearly.
• Portable Design: The compact and lightweight construction makes the tachometer convenient for field inspections and maintenance work.
• Versatile Applications: Suitable for industrial machines, motors, fans, turbines, conveyors, automotive components, and laboratory equipment.

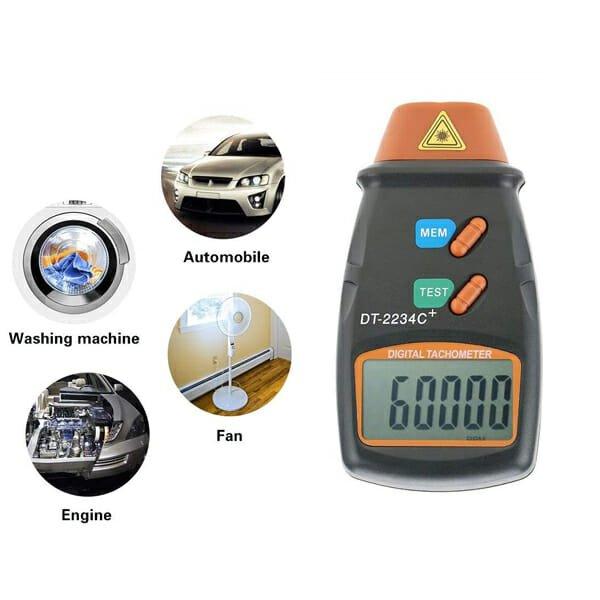

Applications of Non Contact Photo Tachometer

The Non Contact Photo Tachometer can be used wherever rotational speed needs to be measured without physical contact. Its wide RPM range makes it suitable for low- and high-speed rotating equipment across multiple industries.

• Motor RPM measurement
• Fan speed measurement
• Turbine speed measurement
• Industrial machinery testing
• Mechanical maintenance
• Machine diagnostics
• Conveyor system inspection
• Automotive testing
• Vehicle wheel speed testing
• Laboratory research
• Equipment maintenance
• Rotating machinery inspection
• Production machinery monitoring
• Engineering and technical applications

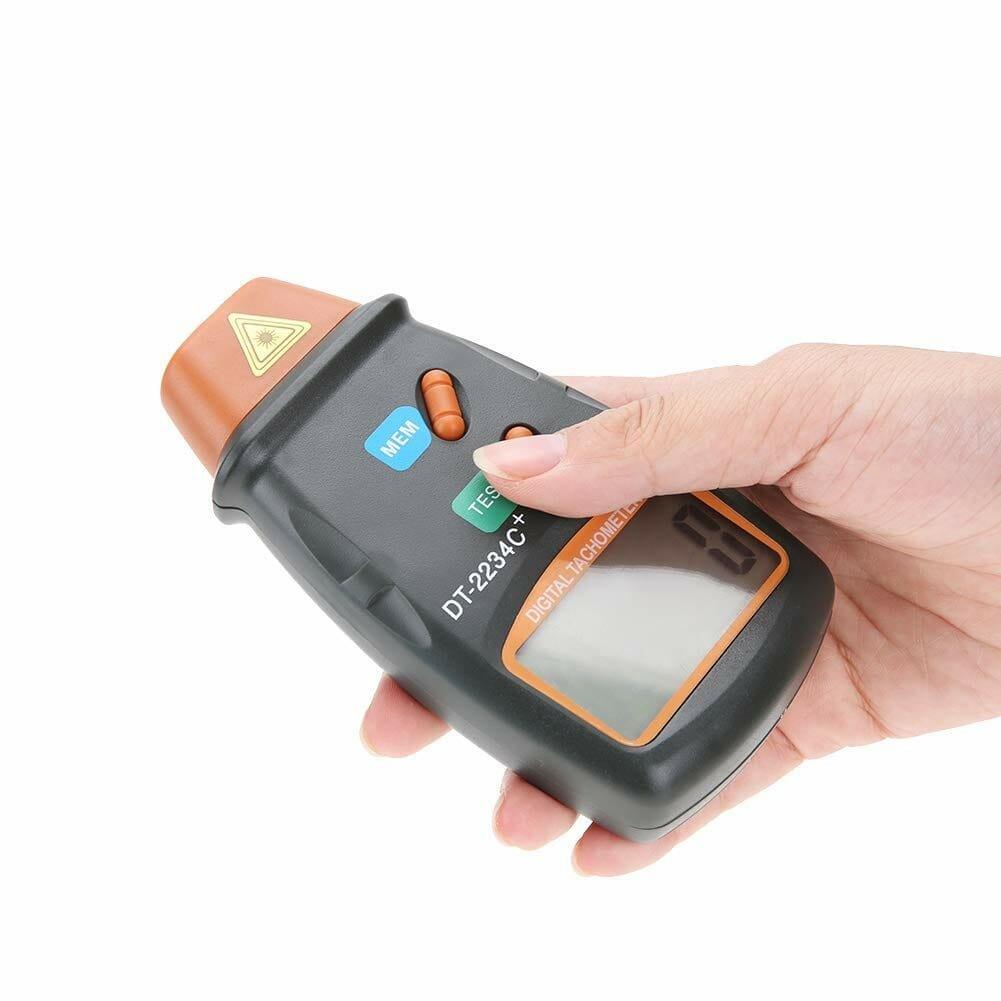

How to Use the Non Contact Photo Tachometer

1. Switch on the Non Contact Photo Tachometer.
2. Prepare the rotating equipment or component that needs to be measured.
3. If required, apply a suitable reflective mark to the rotating target according to the tachometer's operating method.
4. Point the tachometer's optical sensor toward the rotating object.
5. Maintain a suitable alignment between the sensor and the rotating target.
6. Allow the tachometer to detect the rotational movement.
7. Observe the RPM value shown on the LCD display.
8. Record the reading for maintenance, inspection, testing, or diagnostic purposes.
9. Repeat the measurement if required to verify the rotational speed.
10. Switch off the instrument after completing the measurement.

Understanding RPM Measurement

Why Choose Non Contact Photo Tachometer?

The Non Contact Photo Tachometer provides a convenient solution for measuring the rotational speed of moving machinery without direct physical contact. This makes it useful for applications where the rotating component is difficult to access or where contact-based measurement is not desirable.

Its wide 0 to 100,000 RPM measurement range, 0.1 RPM resolution, high specified accuracy, LCD display, and portable battery-powered design make it suitable for mechanical maintenance, industrial inspection, laboratory testing, automotive applications, and machine diagnostics.

Frequently Asked Questions

What is a Non Contact Photo Tachometer?

A Non Contact Photo Tachometer is a digital instrument used to measure the rotational speed of moving objects in RPM without physically touching the rotating component.

What does the Non Contact Photo Tachometer measure?

It measures the rotational speed of an object in revolutions per minute (RPM).

What is the RPM measurement range?

The measurement range is 0 to 100,000 RPM.

What is the accuracy of the tachometer?

The specified accuracy is ±0.05% of the reading.

What is the resolution of the Photo Tachometer?

The tachometer has a resolution of 0.1 RPM.

How does a non-contact tachometer work?

The tachometer uses an optical sensor to detect the movement of a rotating target and calculates its rotational speed in RPM.

Does the tachometer need to touch the rotating object?

No. It is designed for non-contact measurement using an optical sensing method.

Can this tachometer measure motor RPM?

Yes. Motor RPM measurement is one of the primary applications of the instrument.

Can it be used for fan speed measurement?

Yes. The tachometer can be used to measure the rotational speed of fans and other rotating components.

Can the Photo Tachometer be used for turbines?

Yes. Turbine rotational speed measurement is one of the listed applications of the instrument.

Can this tachometer be used for automotive applications?

Yes. It can be used for vehicle wheel speed and other rotational-speed testing in automotive applications.

Does the tachometer have an LCD display?

Yes. The instrument features an LCD digital display for viewing RPM measurements.

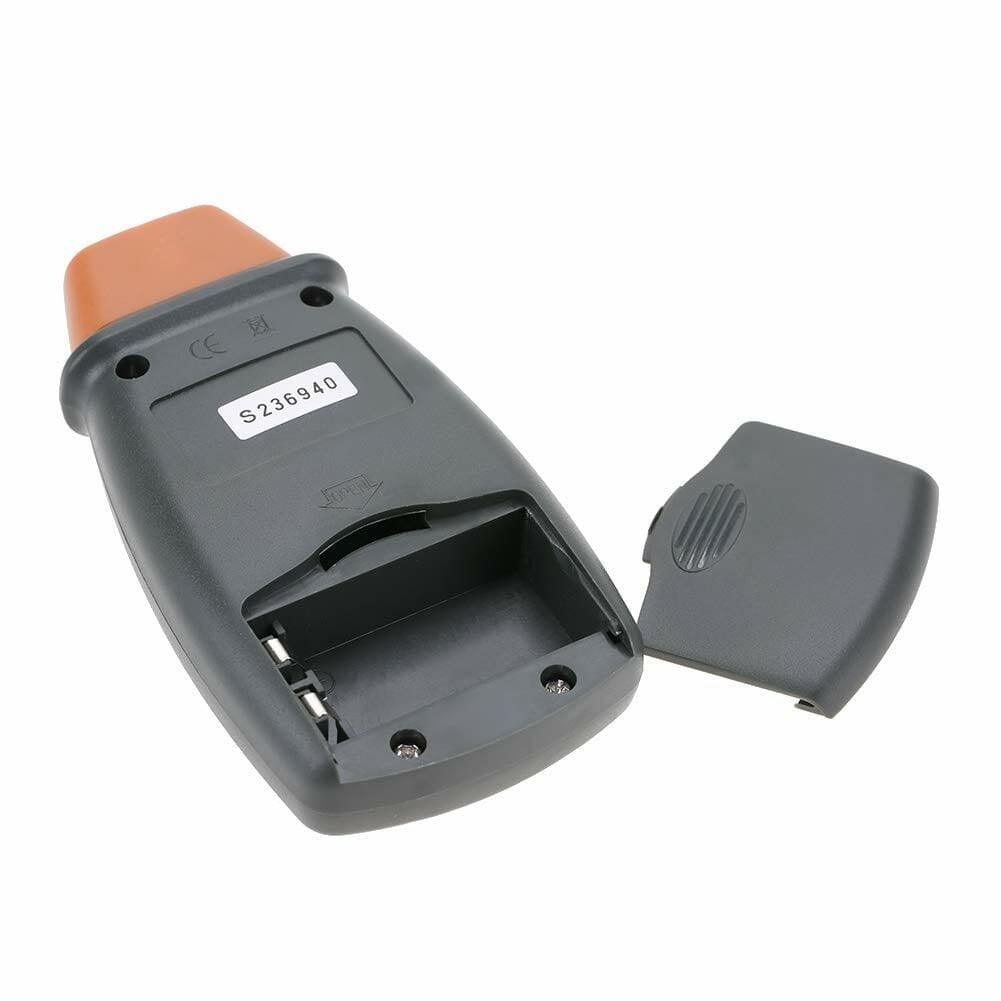

What battery does the Non Contact Photo Tachometer use?

The tachometer operates using a 9V battery.

Is the Photo Tachometer portable?

Yes. Its compact dimensions of 150 mm × 60 mm × 30 mm and approximate weight of 200 g make it convenient for portable use.

Can this tachometer be used for machine maintenance?

Yes. It is suitable for mechanical maintenance, equipment inspection, and machine diagnostics where rotational speed needs to be checked.

Can laboratories use this Non Contact Tachometer?

Yes. The product is suitable for laboratory and research environments requiring rotational-speed measurement.

What is the main advantage of non-contact RPM measurement?

Non-contact measurement allows rotational speed to be checked without physically touching the moving component, which is useful for rotating machinery and applications where contact-based measurement is inconvenient.
