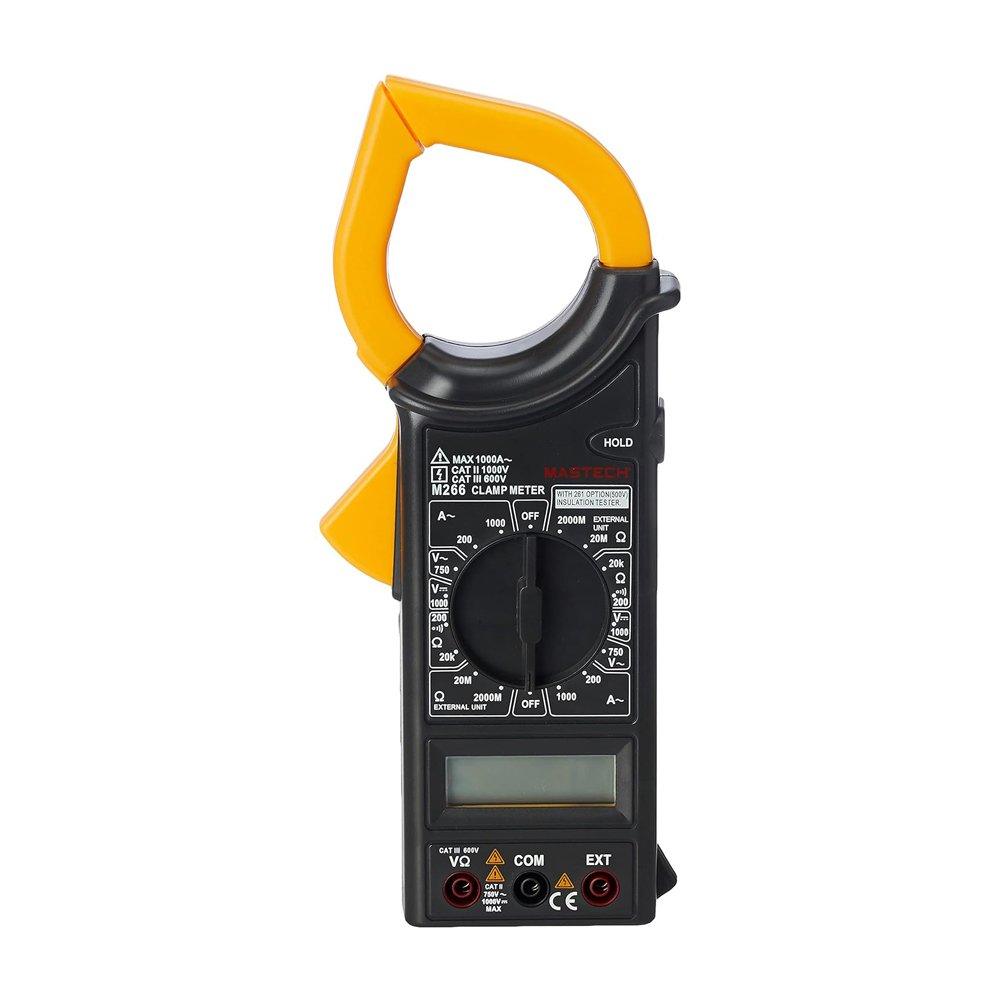

Mastech M266 Digital AC Clamp Meter
Digital AC Clamp Meter (Model: M266) This UGB Digital AC Clamp Meter is a versatile, portable, 3...
Vendor:
Uniglobal Business
Availability:
Many In Stock
- Rs. 1,003.00
Rs. 1,416.00- Rs. 1,003.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
Rs. 1,003.00
Couldn't load pickup availability
Digital AC Clamp Meter (Model: M266)
This UGB Digital AC Clamp Meter is a versatile, portable, 3 1/2 digit meter designed for measuring DC and AC voltage,e AC current, resistance, continuity tests, and insulation testing. Certain models in the series also offer frequency or temperature tests, making this an ideal tool for a variety of applications.
Key Features of Digital AC Clamp Meter :
- Display: 3½ digit LCD, with automatic polarity indication.
- Terminal and Earth Ground: 1000V DC or 750V RMS AC (sine wave).
- Measuring Method: Dual-slope integration A-D converter.
- Overrange Indication: "1" Figure only in the display.
- Polarity Indication: " -" displayed for negative polarity.
- Low Battery Indication: "BAT" appears to the left of the display.
- Optional Accessories: Thermocouple (K-type).
- Safety Rating: CE(EMC+LVD), ETL CAT III 600V, CAT.II 1000V.
Digital AC Clamp Meter Specifications:
| Specification | Details |
|---|---|
| Display Counts | 2000 |
| Jaw Opening Size | 50 mm |
| Voltage Range (DC) | 0-1000 V |
| Voltage Accuracy (DC) | ±(0.8 % + 3 Digits) |
| Current Range (AC) | 0-1000 A |
| Current Accuracy (AC) | ±(3.0 % + 10 Digits) |
| Voltage Range (AC) | 0-750 V |
| Voltage Accuracy (AC) | ±(0.8 % + 3 Digits) |
| Resistance Accuracy | ±(1.0 % + 8 Digits) |
| Frequency | 0-2 kHz |
| Frequency Accuracy | ±(2.0 % + 5 Digits) |
| Power | 9V 6F22 Battery |
| Operating Environment | 0°C to 40°C |
| Storage Environment | -10°C to 50°C |
| Relative Humidity | < 80% RH |
| Weight | 268 g |
| Dimensions | 235 x 96 x 46 mm |
| Maximum Voltage Range (DC) | 601-1000 V |
| Max. AC Current Range | 601-1000 A |
| Maximum Voltage Range (AC) | 601-750 V |
| Resistance Range (Ohm) | 0-2 MΩ |
Note:
The product may differ (e.g., color) from the image displayed on the website. Please review the technical specifications provided for a better purchasing decision.
