The HTC CM-2030 is a 3½-digit digital clamp meter with backlight and manual range. It measures AC|DC...
Vendor: Uniglobal Business
Availability: Many In Stock
Rs. 1,180.00
Rs. 1,180.00
Please hurry! Only 0 left in stock
Subtotal: Rs. 1,180.00
Ask an expert
HTC Digital AC Clamp Meter CM-2030

HTC Digital AC Clamp Meter CM-2030

Rs. 1,180.00
HTC Digital AC Clamp Meter CM-2030
HTC Digital AC Clamp Meter CM-2030
HTC Digital AC Clamp Meter CM-2030
HTC Digital AC Clamp Meter CM-2030
HTC Digital AC Clamp Meter CM-2030

HTC Digital AC Clamp Meter CM-2030

Rs. 1,180.00
Description

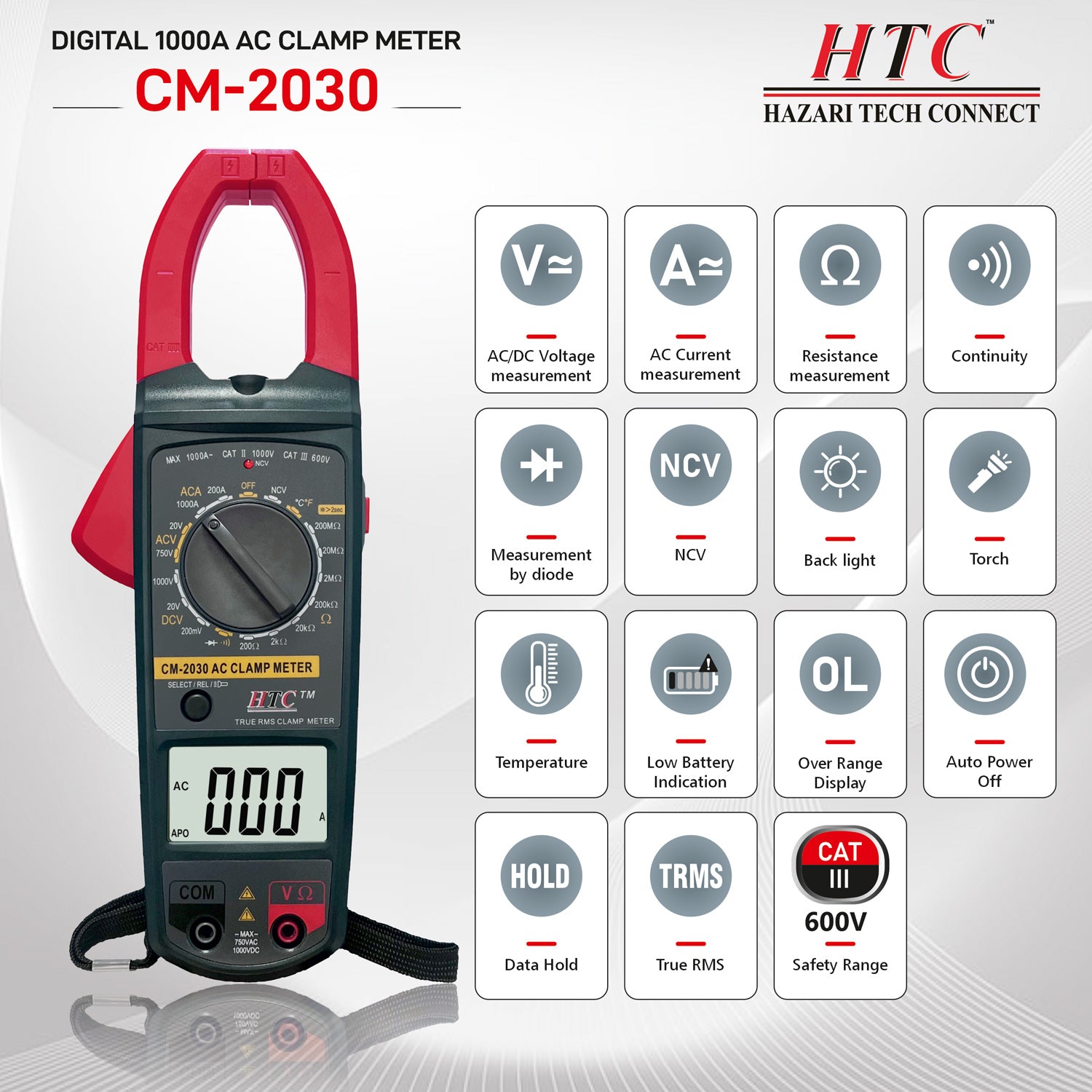

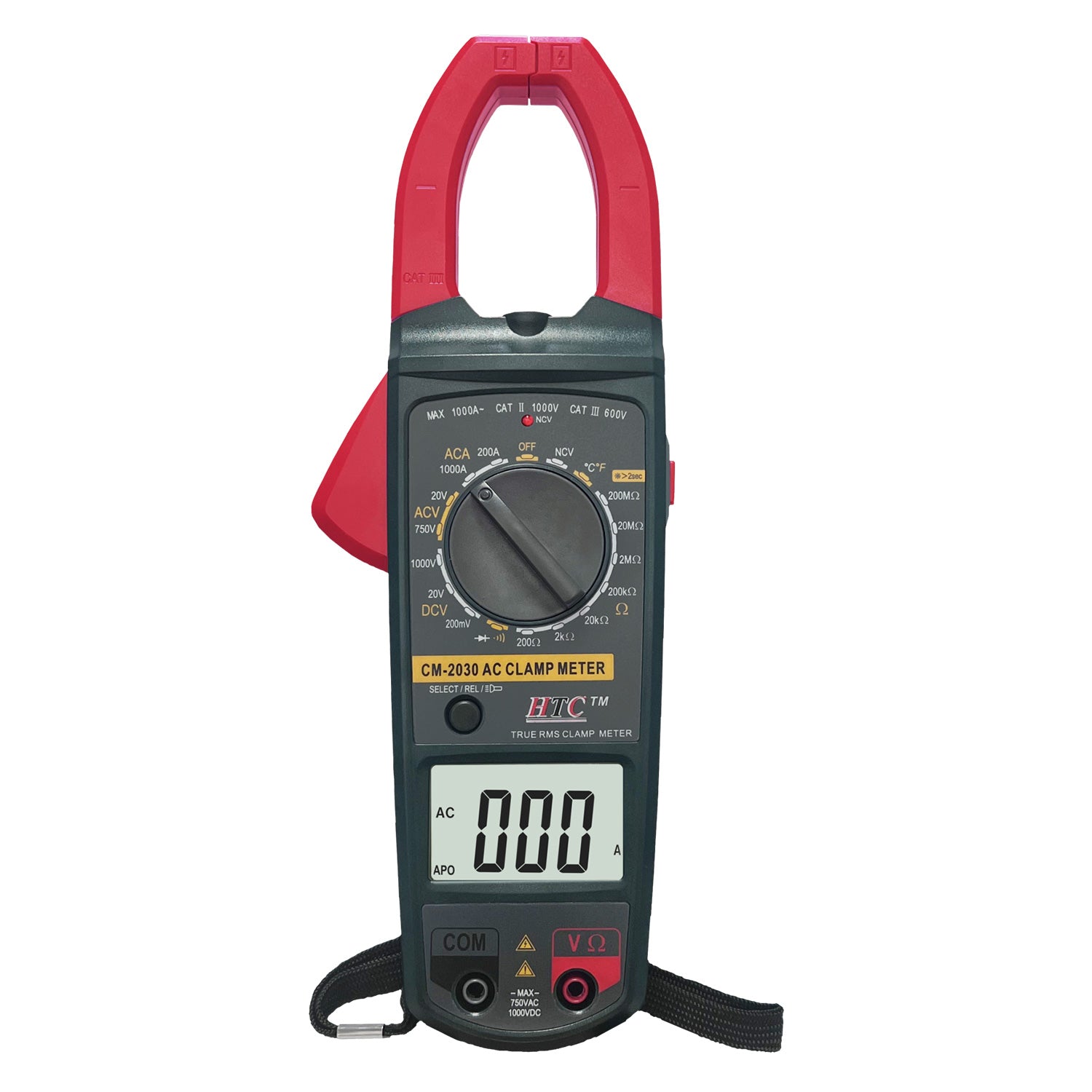

The HTC CM-2030 is a 3½-digit digital clamp meter with backlight and manual range. It measures AC|DC voltage, AC current up to 1000A, resistance, and capacitance, featuring True RMS

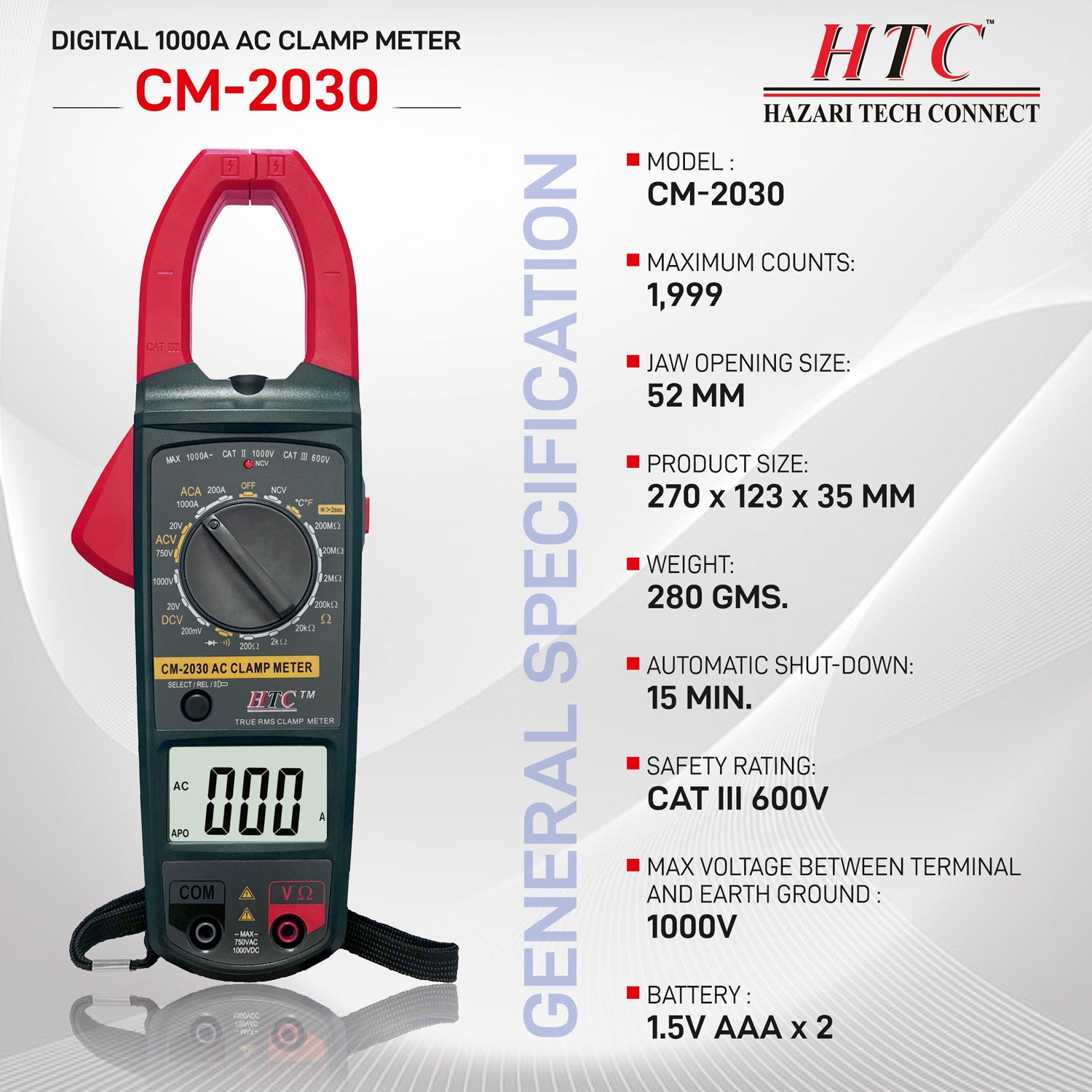

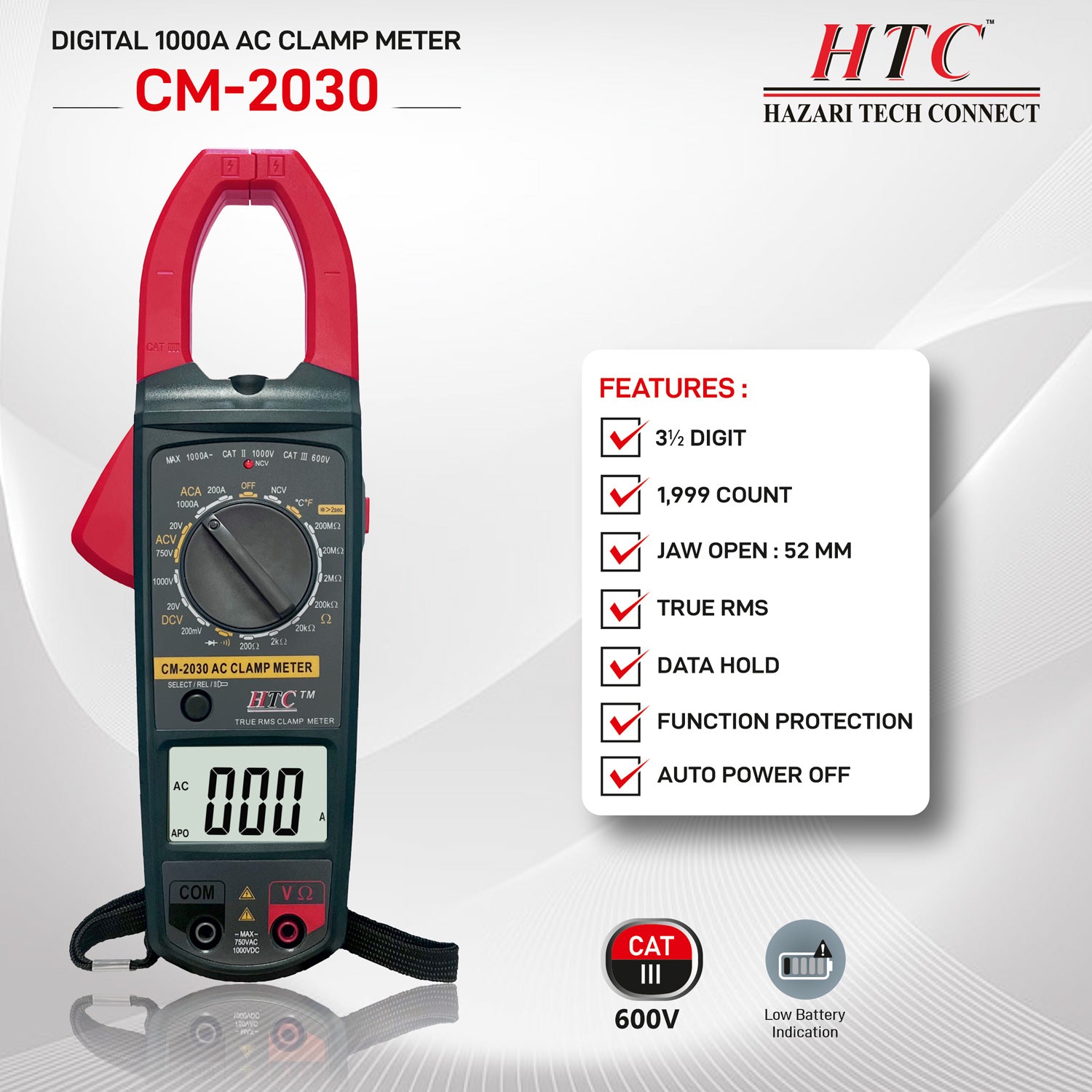

Key Features

  • 3½ Digit
  • 1,999 Count
  • Jaw Open : 52 MM
  • Auto Power Off

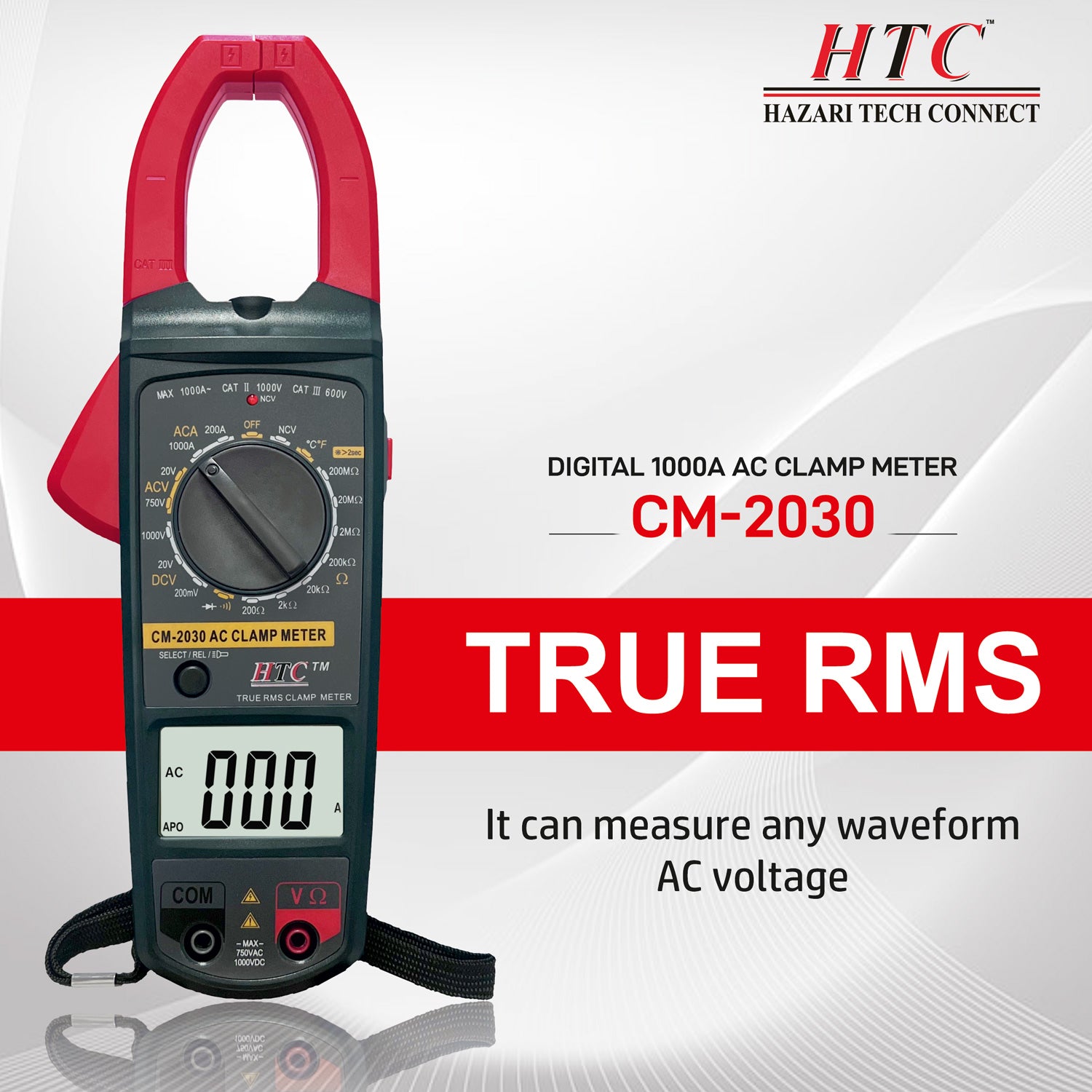

  • TRUE RMS
  • Data Hold
  • Function protection
  • Power :  1.5V AAA x 2
  • Dimension : H270 x W123 x D35 mm
  • Weight : Approx. 280 g

What's in the box?

  • HTC CM-2030
  • Test leads
  • Manual
  • Carrying Bag
  • Battery

Product Specifications

DC VOLTAGE
Range Resolution Accuracy
200mV 0.1 mV ±0.5% of rdg ±5 digits
20V 10mV
1000V 1V ±1.0% of rdg ±5 digits


AC VOLTAGE
Range Resolution Accuracy
20V 10mV ±1.0% of rdg ±5 digits
750V 1V ±1.2% of rdg ±5 digits



AC CURRENT
Range  Resolution Accuracy
200A 0.1A ±2.0% of rdg±5 digits
1000A 1A



RESISTANCE
Range Resolution Accuracy
200Ω 0.1Ω ±0.8% of rdg±5 digits
2kΩ 1Ω ±0.8% of rdg±1 digits
20kΩ 10Ω
200kΩ 100Ω
2MΩ 1kΩ
20MΩ 10kΩ ±1.2% of rdg±5 digits
200MΩ 100kΩ


TEMPERATURE
Range Resolution Accuracy
-40ºC~1000ºC 1ºC

<400ºC±(1.0% +5) digit

>400ºC±(1.5% +15) digit
0ºF~1832ºF 1ºF

<750ºF±(1.0% +5) digit

 >750ºF±(1.5% +15) digit
