Description



DO Meter - Dissolved-Oxygen-Meter- JPB-70A

The UGB DO Meter - Dissolved-Oxygen-Meter- JPB-70A is a pen-type intelligent dissolved oxygen analyzer designed for laboratory use. It is compact, portable, and equipped with advanced features like automatic temperature compensation and fast response time, making it ideal for on-site operations.

Key Features of DO Meter - Dissolved-Oxygen :

Feature Description
Usage/Application Laboratory
Automation Grade Semi-automatic
Weight 100 Gram
Range 0-20mg/L
Model Name/Number JPB-70A
Measurement Range 0.0 to 20.0 mg/L
Accuracy 0.3 mg/L
Resolution 0.1
Residual Current Not more than 0.15 mg/L
Response Time No more than 30s (90% response at 20°C)

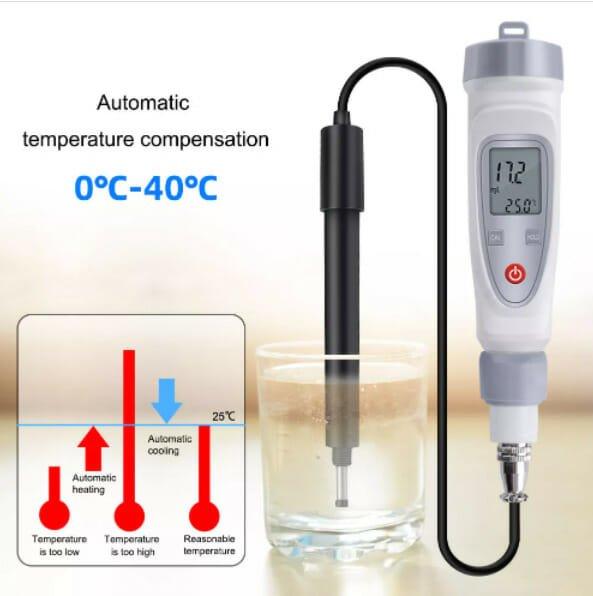

Automatic Temperature Compensation Range (0 ~ 40) °C
Measuring Range Dissolved oxygen: (0.0 ~ 20.0) mg/L
Temperature: (0 ~ 40) °C

Instrument Keyboard Description:

The instrument features a user-friendly keyboard interface designed for easy operation. Below are the key functionalities:

  • Power Switch: Turns the device on and off.
  • CAL Key: Initiates calibration. Long press for 5 seconds to enter the calibration interface.

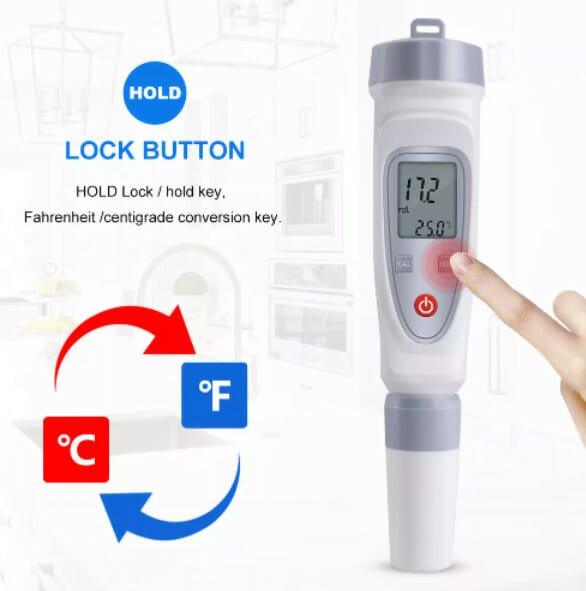

  • HOLD Key: Activates the lock/hold function to freeze current readings.
  • Temperature Conversion Key: Toggles between Fahrenheit and Celsius temperature scales.

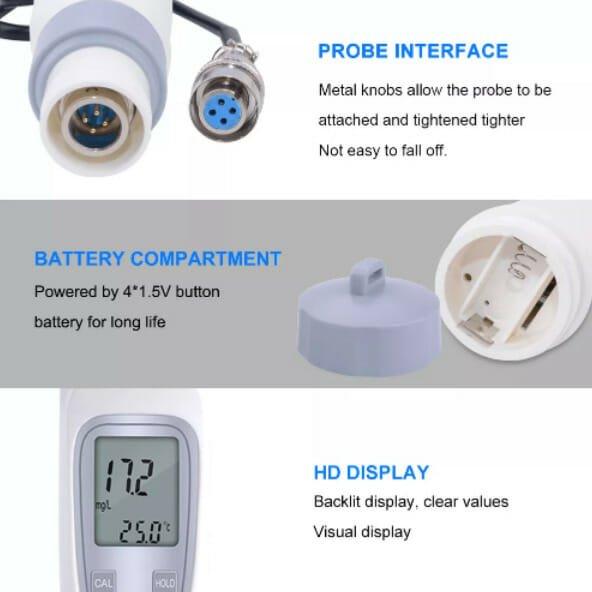

The instrument comprises two main components:

  • Sensor: A polarized film-type dissolved oxygen electrode designed for high accuracy and portability.
  • Electronic Unit: Features high-integrated circuits and a dot-matrix LCD for displaying dissolved oxygen and temperature readings.

Specifications of Dissolved-Oxygen- Meter:

Power Supply 1.5V button battery (4)
Dimensions (mm) Φ40 x 185 (without electrodes)
Size 185 mm
Weight 88 g
LCD Display Dot-matrix display
Temperature Compensation Automatic, with fast response time
Colour White
Minimum Order Quantity 1
